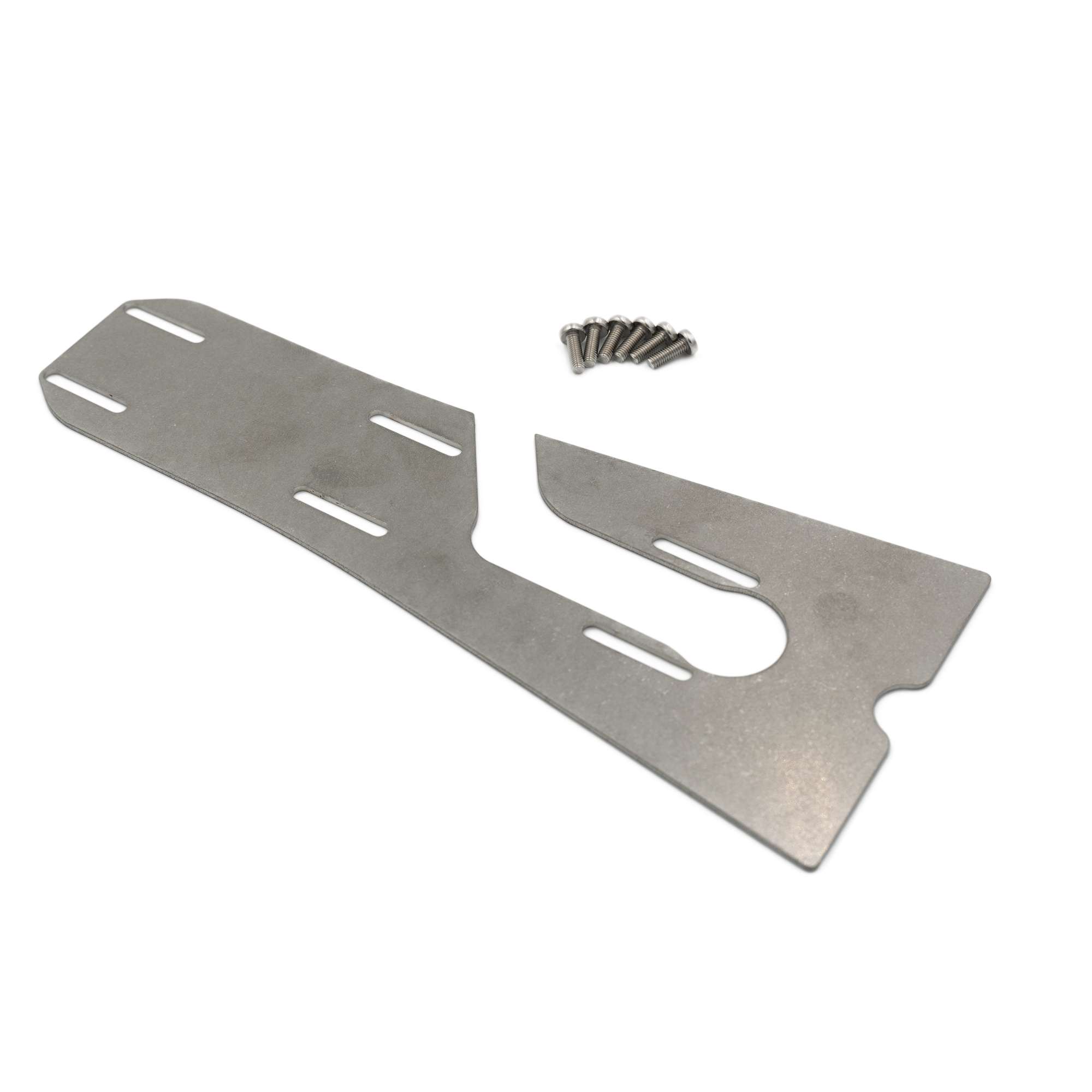

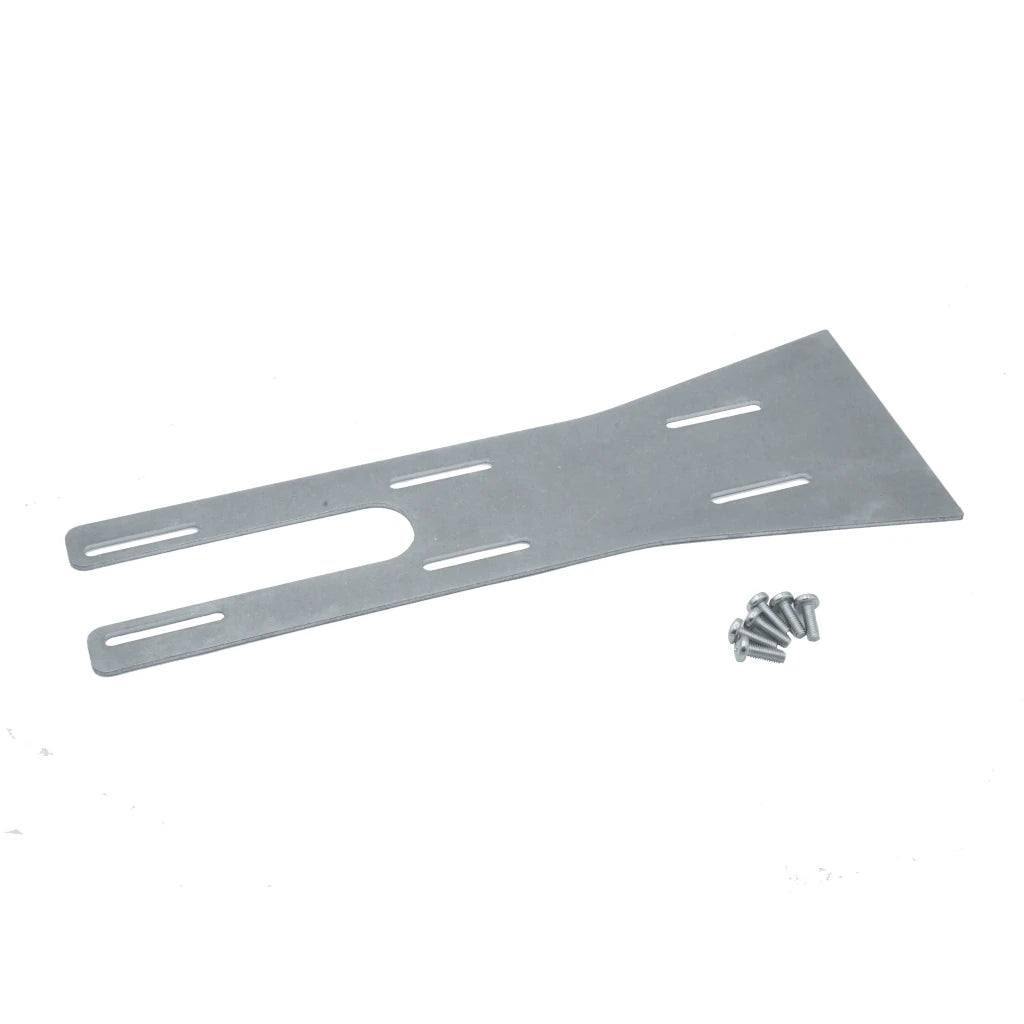

Rooster Rooter spray deflector, flat stainless plate with a transducer cut-out and screws
Product image 2, can be opened in a modal.
Rooster Rooter – Transducer Spray Deflector
Product image 3, can be opened in a modal.
Garmin Rooster Rooter deflector plate with its cut-outs and locating tabs
Product image 4, can be opened in a modal.

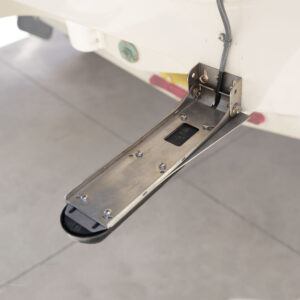

Rooster Rooter deflector fitted around a Lowrance transducer on a white boat transom
Product image 5, can be opened in a modal.

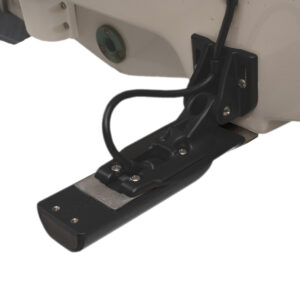

Garmin transducer on a white transom with the Rooster Rooter deflector fitted above it
Product image 6, can be opened in a modal.

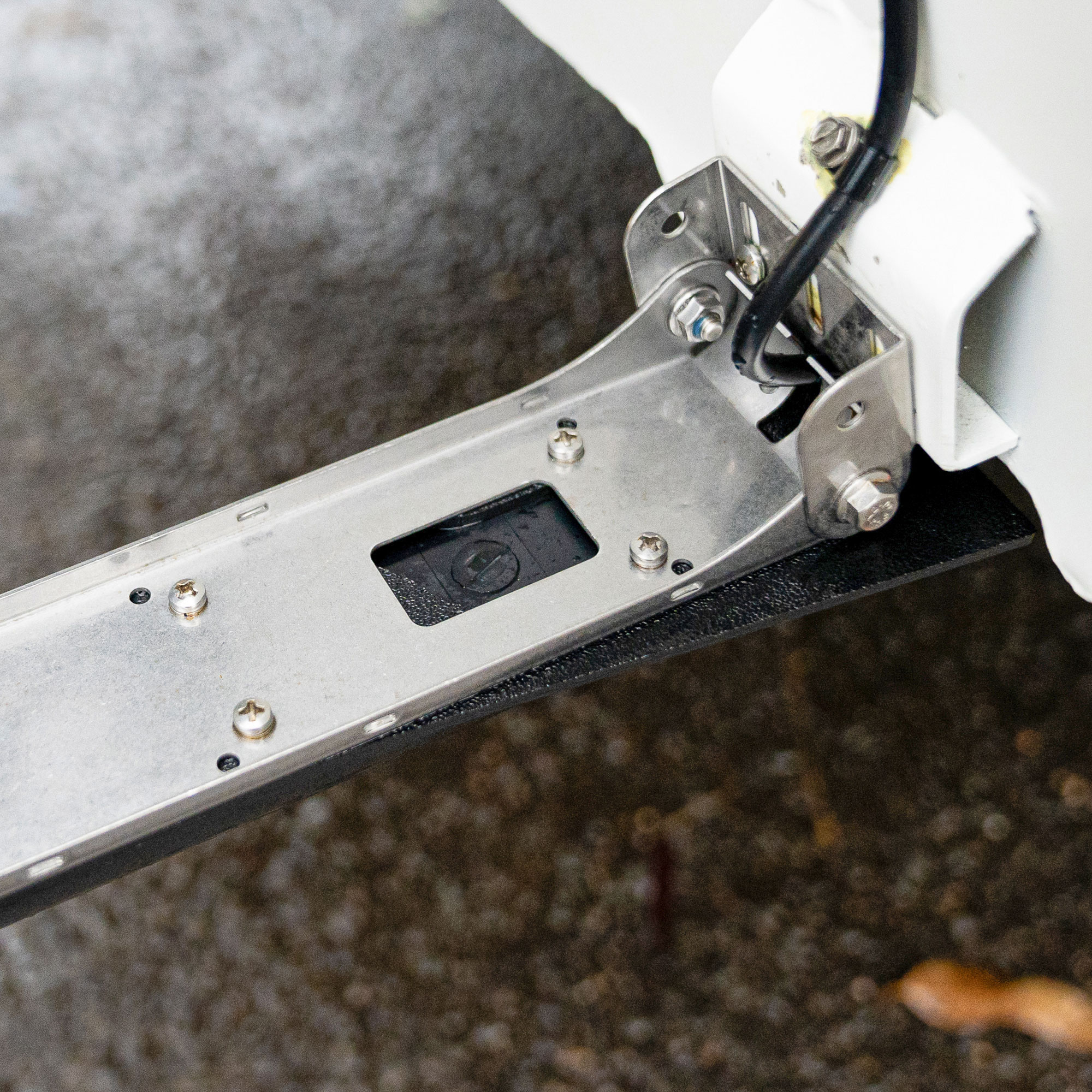

Rooster Rooter deflector fitted along a Lowrance HD transducer bracket on a transom
60 day money back guarantee
Free shipping on orders over $149

Rooster Rooter – Transducer Spray Deflector

The easiest to install transducer spray deflector for stopping that annoying rooster tail from ruining your transducer reading and covering the back of your boat with water.

Specifications

Made in Australia

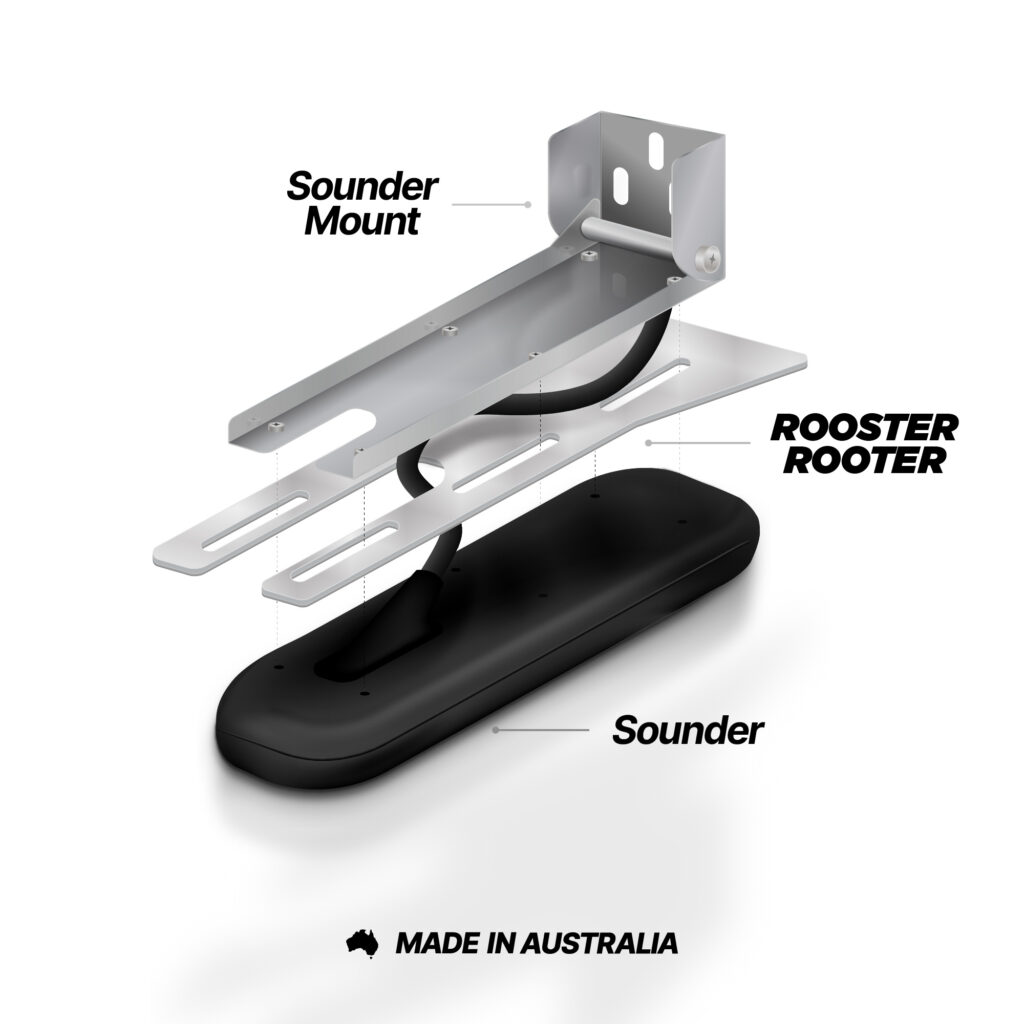

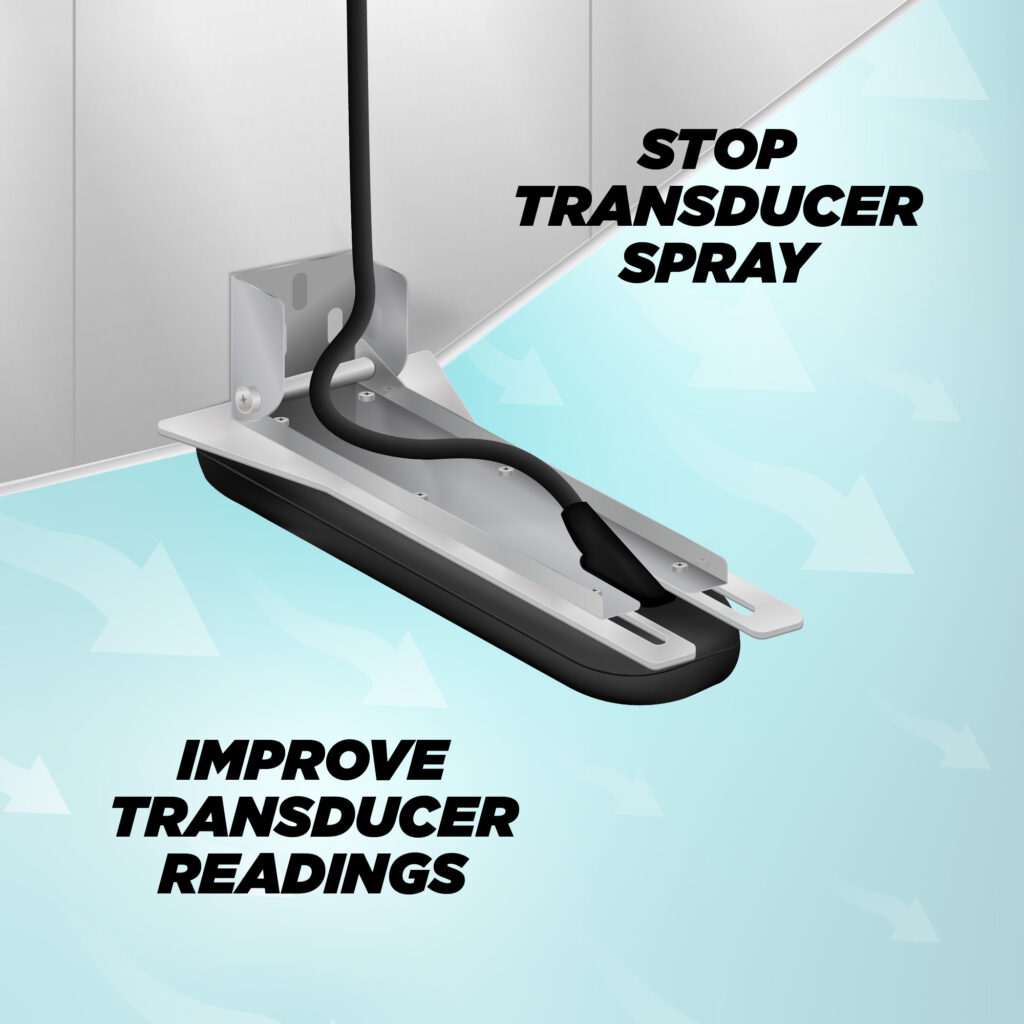

Rooster Rooter transducer spray deflector. Sits between the transducer and the bracket to knock down rooster-tail spray without changing sonar performance.

Construction

  • Material: 2 mm marine-grade stainless steel
  • Finish: raw stainless (marine use)
  • Install: wedges between transducer and stainless or plastic bracket
  • Tools: none for standard fitments — no drilling on supported models
  • Typical install time: under 2 minutes

Variants / SKUs

  • BP2301 - Lowrance / Simrad Totalscan, 3D Structure, 3-in-1 Active Imaging
  • BP2305 - Lowrance Active Imaging HD 3-in-1 FishReveal family
  • BP2303 - Garmin GT transom transducers listed below

BP2303 Compatibility - Garmin

  • GT24UHD-TM
  • GT40-TM
  • GT41-TM
  • GT50M-TM
  • GT51M-TM
  • GT52HW-TM
  • GT54UHD-TM
  • GT56UHD-TM

BP2305 Compatibility - Lowrance

  • ActiveImaging HD 3-in-1 FishReveal

BP2301 Compatibility - Lowrance / Simrad

  • TotalScan
  • StructureScan 3D
  • Active Imaging 3-in-1 (not HD FishReveal)

Does not fit LSS-2 unless extra holes are drilled in the mount (not recommended).

Which Lowrance Active Imaging do I have?

  • Original Active Imaging 3-in-1 → BP2301
  • Active Imaging HD 3-in-1 FishReveal → BP2305

Confirm on the cable tag or the sounder software if you are unsure.

Lowrance Rooster Rooter installation guide

Shipping Info
  • 60 Day Returns (view our returns & refunds policy)
  • Free Shipping for orders over $149 (bulky items excluded)
  • Same-day dispatch on orders received during business days before midday AEST
  • Tracked shipping on every order
  • Australia-wide delivery: Metro: 2-3 business days, Regional / Remote: 4-8 business days
  • International shipping worldwide: 7-12 business days (customs delays possible)
  • More shipping information

Rooster Rooter: No More Rooster Tails!

Tired of transducer rooster tail spray covering your boat and ruining sonar? The Rooster Rooter is a simple and effective spray deflector for Lowrance, SImrad and Garmin and transducers. We’ve designed this adaptor to mount in between the transducer and the bracket keeping the back of your boat looking tidy. Its simple to install and is designed to deflect water without interfering with sonar readings. This is the simplest transducer spray deflector on the market.

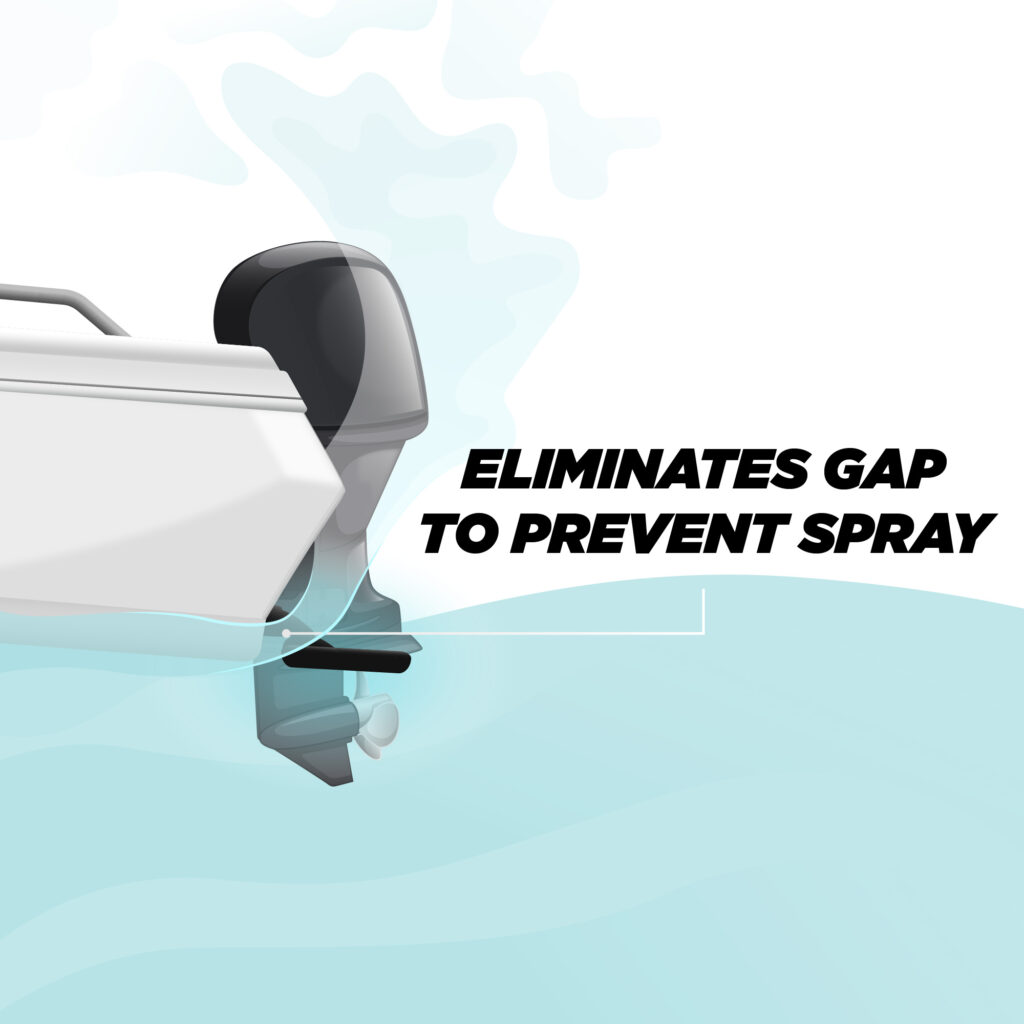

Made from 2mm stainless steel the Rooster Rooter can be installed in minutes to stop you from drowning the back of your boat with water. The way this works is simple; it blocks the water coming up behind the transducer and spraying everywhere. Installation is simple by just wedging it between the stainless steel or plastic bracket and the transducer.

Installation

Extremely easy. No tools or drilling required — it simply wedges into place in under 2 minutes.

Transducer Compatability

Garmin – BP2303

Fits the following transducers:

  • GT24UHD-TM
  • GT40-TM
  • GT41-TM
  • GT50M-TM
  • GT51M-TM
  • GT52HW-TM
  • GT54UHD-TM
  • GT56UHD-TM

Lowrance / Simrad – BP2301

Fits the following transducers that use either stainless steel or plastic mounts:

  • Totalscan
    000-12568-001
  • 3-in-1 Active Imaging
    000-14814-001, 000-14489-001

*This does not fit the LSS-2 Transducer without drilling 6 more holes in the mount

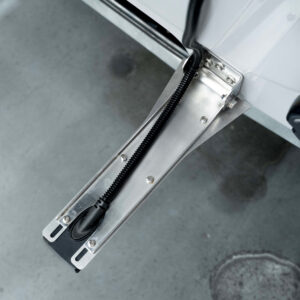

Lowrance HD – BP2305

Fits the following transducer:

  • ActiveImaging HD 3-in-1 FishReveal Transducers
    000-16062-001, 000-16060-001, 000-16061-001

  • 5 stars: 49 (84%)
  • 4 stars: 0 (0%)
  • 3 stars: 1 (2%)
  • 2 stars: 1 (2%)
  • 1 star: 7 (12%)
J
Jeff Shannon
Berley pro reply

Hello Marty, apologies for the delay. The transducer spray deflector was the wrong one. The packaging said it was for the active imaging transducer. My transducer is the 3 in 1 transducer. How this error occurred I don’t know. Very possible I may have ordered the wrong one by mistake. Am not blaming you folks. Think it may be modified to fit the 3 in 1 transducer. Well built component, manufactured by people who know how to make things. Shipping time and communication from across the Pacific Ocean to the US was impressive. Thinking that sending it back would not make any sense. An odd review for certain, none the less, my impression is that BerlyPro is reputable business, worthy of notice by boaters world wide.
Best Wishes to our Friends in Australia.
J.S USA

G
Geoff Finlen
roosters rooter

Heading to the gulf in September mate, will let you know after the trip👍

B
Brint Hall
wont work on my Tracker

I order this for my tracker Panfish to cut down on the water spray. And when I installed it, it wasn't long enough to cover the gap between the transducer and the hull. When I sent them a email to see about getting a longer one my email went unanswered. when I sent another email I was told that if I wanted an refund I need to ship it back to Australia. I'm in the States Its was going to cost me more to ship to back than I paid for it.

G
Greg Cawthon
Amazing

The spray deflector did exactly as promised. No more spray on my engine cowl, and I never loose transponder signal to my machine. Highly recommended. Simple installation.

J
Jeffery Barker
Just as advertised

Easy install works perfect! Sounder readings are more stable and no rooster tail!

S
Scott Marran
Salt spray gone

I recieved my rooster rooter about 8 days after i ordered!
It didnt really fit my gt 51 garmin transducer screw mounting pattern only two holes out of the 5 lined up but crooked lol! So i drilled a couple holes in it and was able to use 4 screws although bot accross from each other but good enough!
Before the rooster off the xdcr was terrible the mist came into my North river seahawk entire seating area!
Now after RR MIST AND ROOSTER
GONE!!
Very pleased!!!
Scott in California

D
Darren Drummond
Rooster rooter

Yeah mate it don’t work and don’t fit my transducer I have hds 12 lawrance holes don’t line up only could put 3 screws in to give it a try and it sprays all over the motor and still has a roster tail
Cheers
Darren

J
John Felder
Roostered?

My depth sounder would cut out at speed with low fuel level in tank. I’m hoping this will fix it but tank is still half full so will have to wait to find out. If anything I would like to see the rooter wider at the transom to control water flow more. Also since my cable was already taut, I had to deepen the groove for the cable at the transom end by about 15mm to make it fit. I also found two of the original six screws on the transducer broke at the head while trying to remove them due to corrosion over 5 years. Don’t know how to get the broken shanks out.

K
Ken Anderson
Rooster Rooter works

Put the RR on my transducer. Very easy to fit.
It has eliminated practically all of the rooster tail caused by the transducer

A
Andrew Smallwood
Transducer spray deflector

Very well made, super easy to fit in 2 minutes, certainly does the job and stops the spray from my 3 in 1 transducer on my Stacer Crossfire. Has been on for about 12mnths, no issues whatsoever, ive forgot its even there! thanks

R
Rickie Regions
Garmin

Good service but did not fit between my transducer and transom, so it’s just a piece of metal sitting in my drawer.

W
Warren Gilbert
Transducer

Happy with my purchase havnt had a chance to see how it works been some bad weather up in hervey bay it was quick delivery and as described thanks warren

M
Mike Mahmoud
Fits perfectly and comes with everything you need

Perfect fit and fast delivery

T
Thomas forsyth
Not a direct fit for the new HDS PRO transducer

Had to do some modifications to the plate to make it fit my HDS PRO transducer with the cable mounted at the rear these plates aren’t a straight fit.

l
levi zimmerle
Very impressed!

I didn’t have a huge amount of spray coming off the transducer but enough to be getting onto the motor. This little beauty was super easy to install and brought the spray down to zero. Very happy. Cheaper and better looking than some other spray guards on the market.

S
Scott Chamley
Works as described, easy install, non-intrusive design.

I’m very happy with the purchase. The item fits to the transponder itself meaning you don’t need to drill additional holes into the boat like other deflectors on the market. Its small form factor is preferable in my opinion from an aesthetics point of view.
It works in stopping any spray from my transponder which is the was the objective.
It was cheap.
The store was great with very quick postage.

J
John Bone
Rooster Rooter

Easy to fit and effective

A
AARON MCDONALD
No more transducer splash!

Shipping to Pennsylvania was pretty quick. Priced well too. 100% did the trick as I have no more transducer splash. At higher speeds I'd get a huge spray up into the splash well of my Starcraft Holiday 18. Definitely recommend if using the GT-52HW transducer from Garmin

J
Jeremy Hancock
Spray deflector

Holy cow, what was a rooster tail of sea spray covering my engine cowling, using your product I now have nothing. Not even a hint of spray! Amazing product!

J
Josh Crabtree
Works a treat

A really simple product to install and it works great too. I didn’t think it would make such a difference, but there’s no rooster tail of water going all over the motor now. Perfect.

G
Graham Bastian
Lowrance spray deflector

Good company to deal with. Timely delivery of a well made and very effective product

M
Milivoje mick Milanovic
Good job

Yes worked a treat.

D
Dean Heath
Very good mate

Excellent mate works very well

P
Paul Hunter
Rooster Rooter

As described, easy to install - great product and price

B
Brad Cooper

Item did not fit the transducer for HDS12

L
Lyle Kvarnlov
Great Solution!!

The inexpensive and easy to install solution to excessive water spray from my Lowrance 3 in 1 transducer. So glad I found this! Shipment was very quick and had the product within a few days. This thing works!!

J
Jarrod Metselaar
Rooster rooter

The item was delivered quickly and does what it’s suppose to do!
Great work. Highly recommended you to my other kayak buddies

Cheers

P
Paul James
Rooster Rooter

Catchy name, easy to fit and cheap on the pocket.

J
James Thompson
Transducer spray deflector

Did not work at all, a waste of money.

R
Rick Cincotta
Rooster Rooter

As I travelled in my boat I had a jet of water coming off my Totalscan transducer and it was hitting directly where the seal of my outboard cowling attaches. I found salt under the cowling on the engine internals so I had to find a solution asap. I put this on in 5 minutes and it fixed the problem. I still get a bit of a jet but it goes straight out the back. Definitely Served it's purpose. Cheap and effective, very happy with the result. Thank you.

M
Michael Merten
Simple yet effective device

Excellent product! I had an issue with water spraying into my boat from the Lowrance transom mounted transducer. The product from BerleyPro solved that issue. Simple yet effective device!

J
Jason Barnes
Rooster rooter

Worked as it should

Rooster Rooter FAQ

What is the Rooster Rooter?

The Rooster Rooter is a stainless steel transducer spray deflector designed to stop annoying “rooster tail” spray from your transducer.

Which transducers is it compatible with?

It fits most Lowrance & Garmin transducers including TotalScan, Active Imaging, 3-in-1, StructureScan, and similar models.

How easy is it to install?

Extremely easy. No tools or drilling required - it simply wedges into place in under 2 minutes.

Will it affect my sonar performance?

No. The Rooster Rooter is designed to deflect water without interfering with sonar readings.

What material is it made from?

Marine-grade stainless steel for maximum durability and corrosion resistance

Which Rooster Rooter do I need for my Lowrance Active Imaging transducer?

If you have a Lowrance Active Imaging Transducer you need to determmine exactly which one you have. There is the original ActiveImaging 3-in-1 type as well as the newer ActiveImaging HD 3-in-1 FishReveal type.

  • ActiveImaging 3-in-1 → BP2301
  • ActiveImaging HD 3-in-1 FishReveal → BP2305

If you are unsure if you have a Active Imaging 3-in-1 or Active Imaging HD 3-in-1 FishReveal transducer, check the cable tag or unit settings.

The following part numbers require BP2301

  • 000-14489-001 Active Imaging 3-in-1
  • 000-14814-001 Active Imaging 3-in-1 – 6 ft cable

The following part numbers require BP2305

  • 000-16062-001 Active Imaging HD 3-in-1
  • 000-16060-001 Active Imaging HD 3-in-1 – SideScan FishReveal
  • 000-16061-001 Active Imaging HD 3-in-1 (High/Wide) – SideScan
    FishReveal
