BP265201 #
UNI TRANS installation example for Hobie® kayaks Pre 2019 Outback kayaks and Compass, Pro Angler 12, Pro Angler 14, Pro Angler 17, Revo 13, Revo 16, Adventure Island.

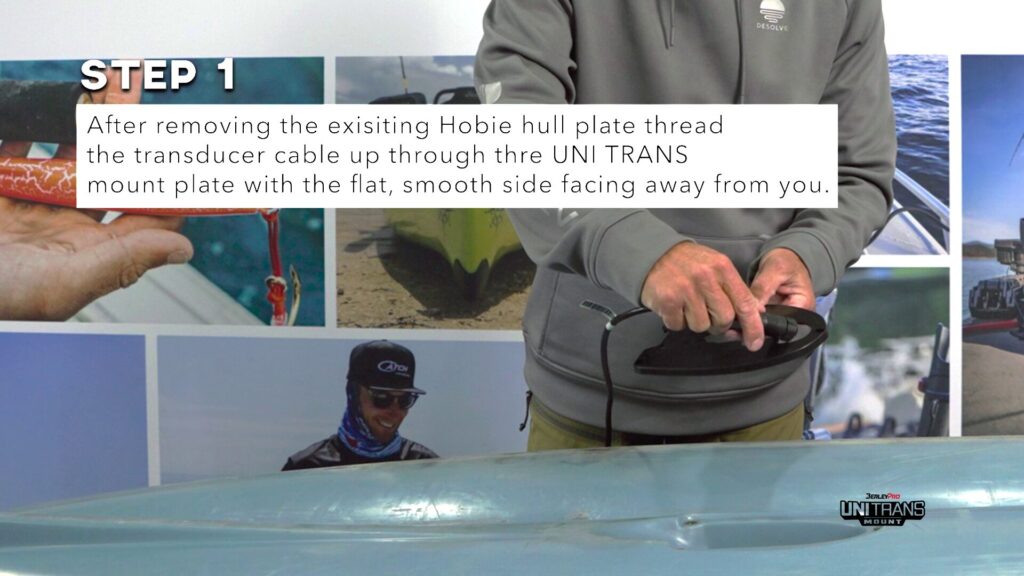

Step 1.
After removing the existing Hobie hull plate thread the transducer cable up through the UNI TRANS mount plate with the flat, smooth side facing away from you.

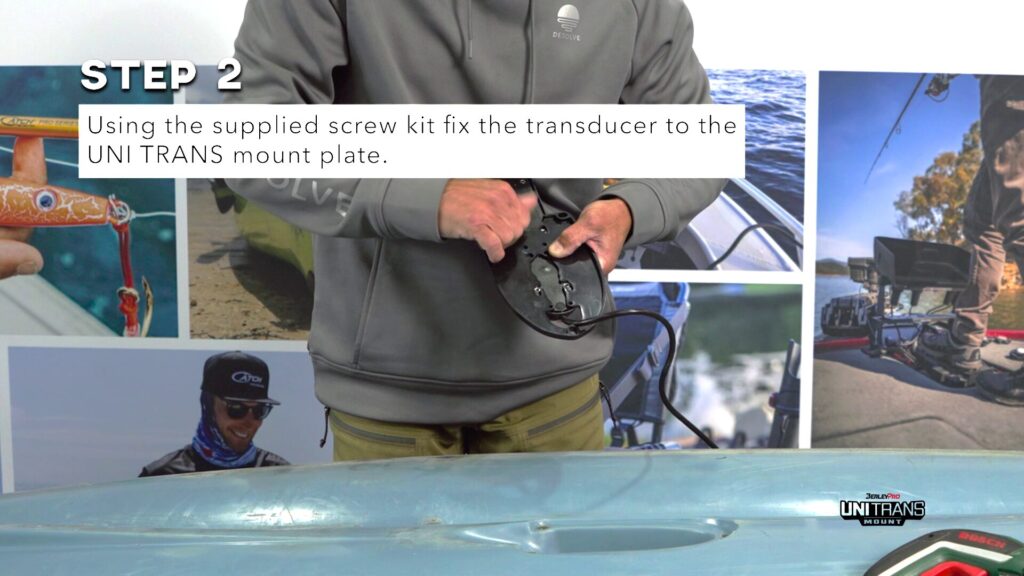

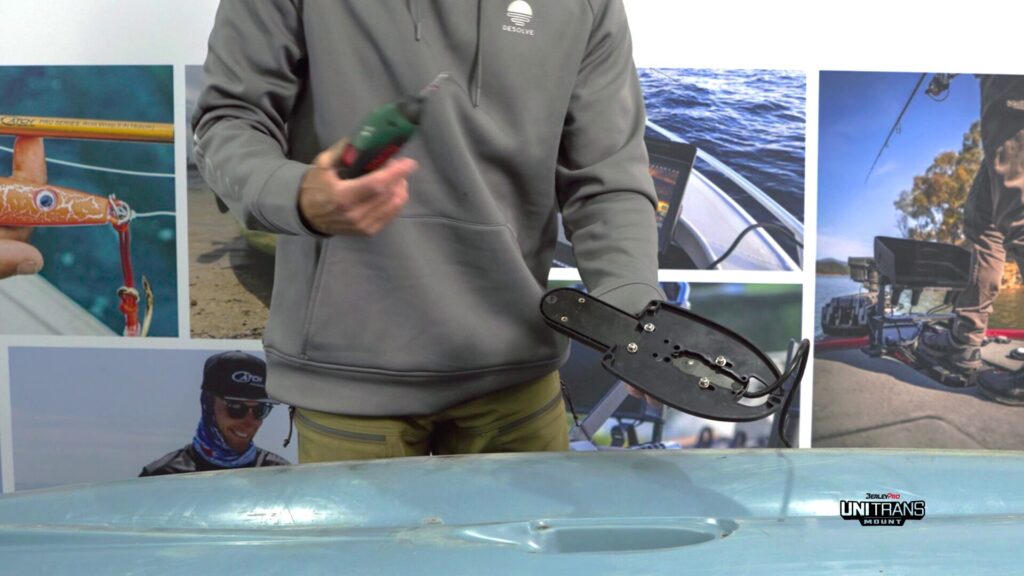

Step 2.
Using the supplied screw kit fix the transducer to the UNI TRANS mount plate.

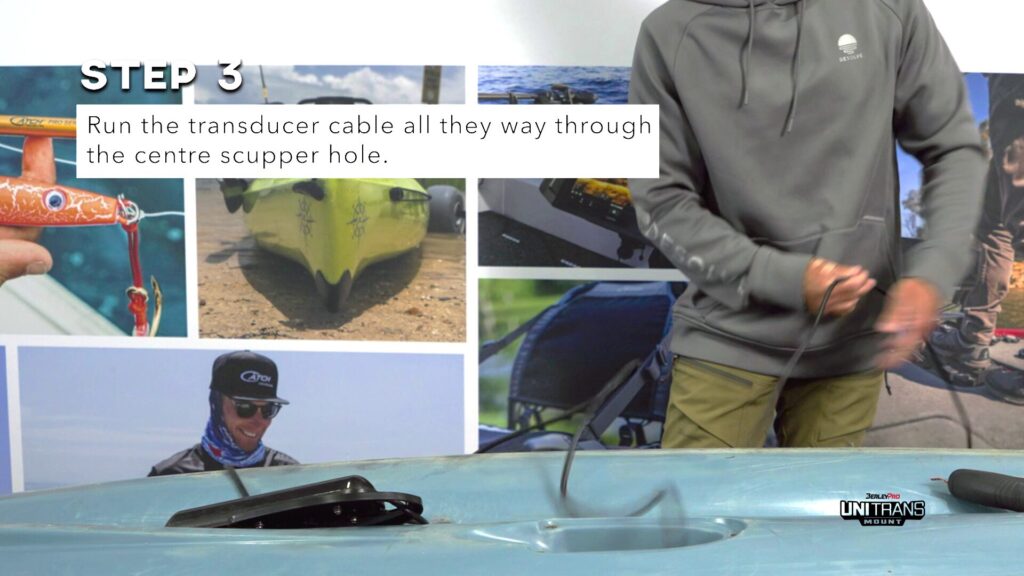

Step 3.
Run the transducer cable all they way through the centre scupper hole.

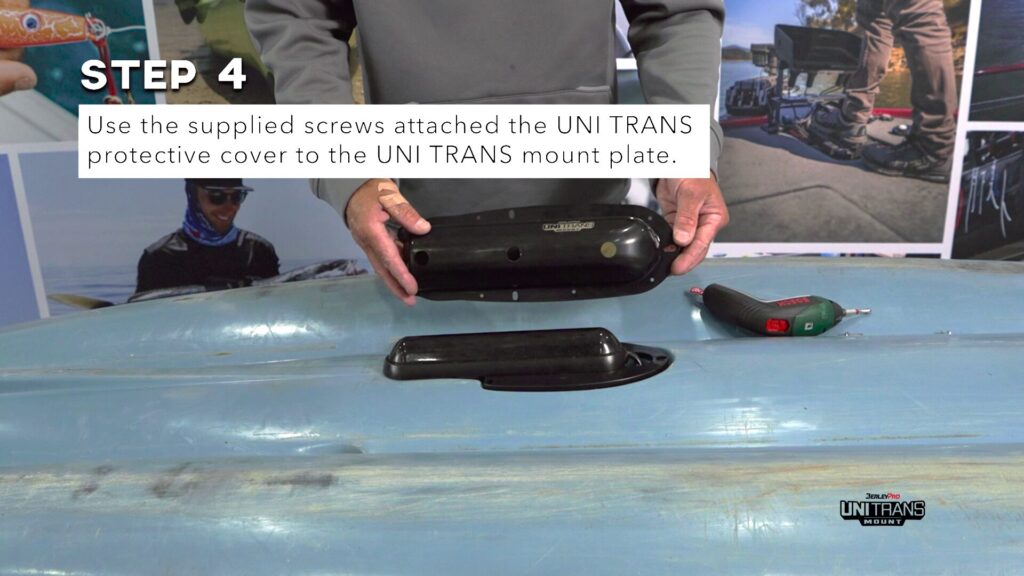

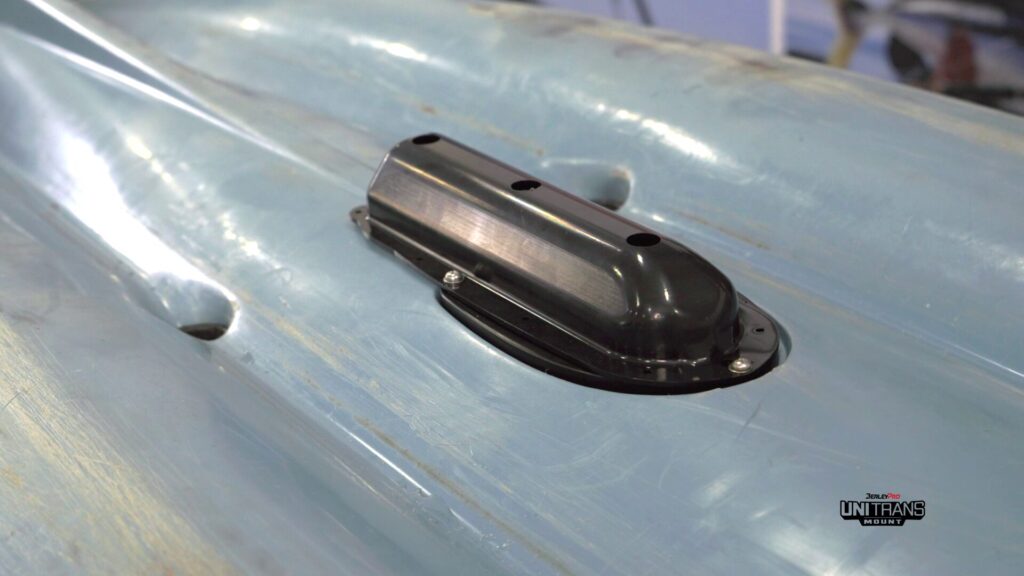

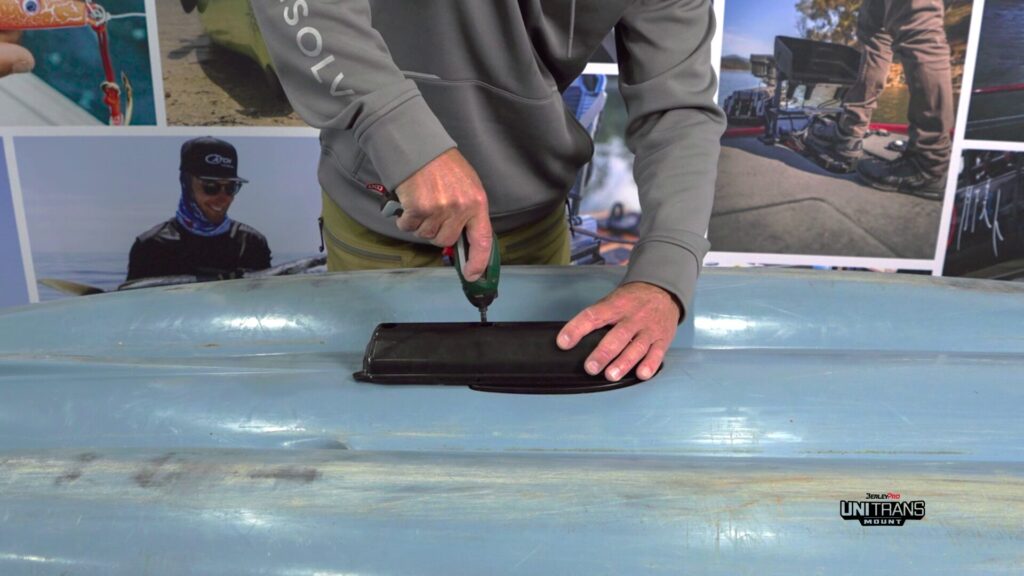

Step 4.
Use the supplied screws to attach the UNI TRANS protective cover to the UNI TRANS mount plate.
