BP265202 #
UNI TRANS installation example for Hobie® Lynx / Passport Models.
Step 1.

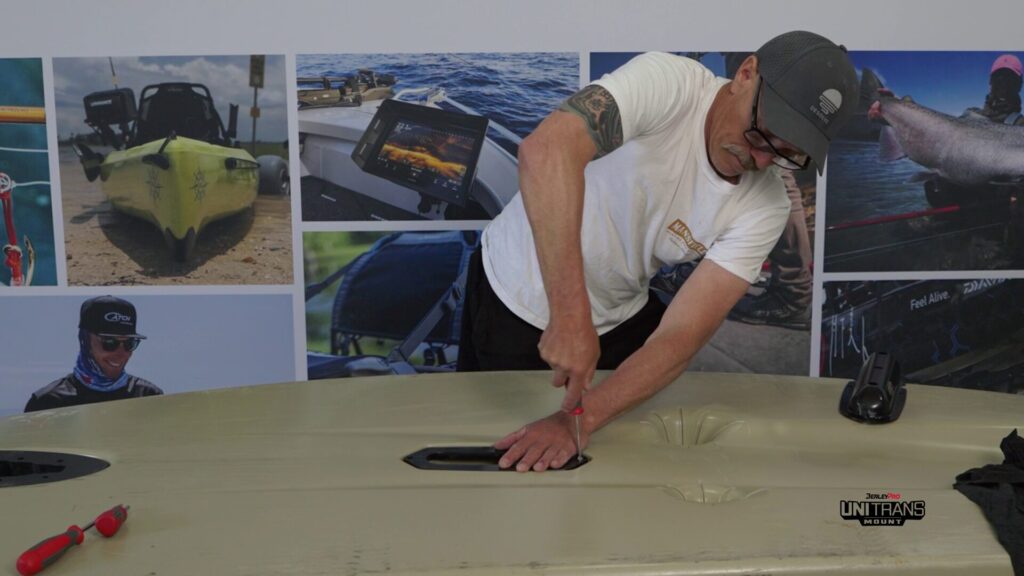

Remove the stock Hobie cavity cover plate from the kayak and make sure to keep the screws.
Step 2.

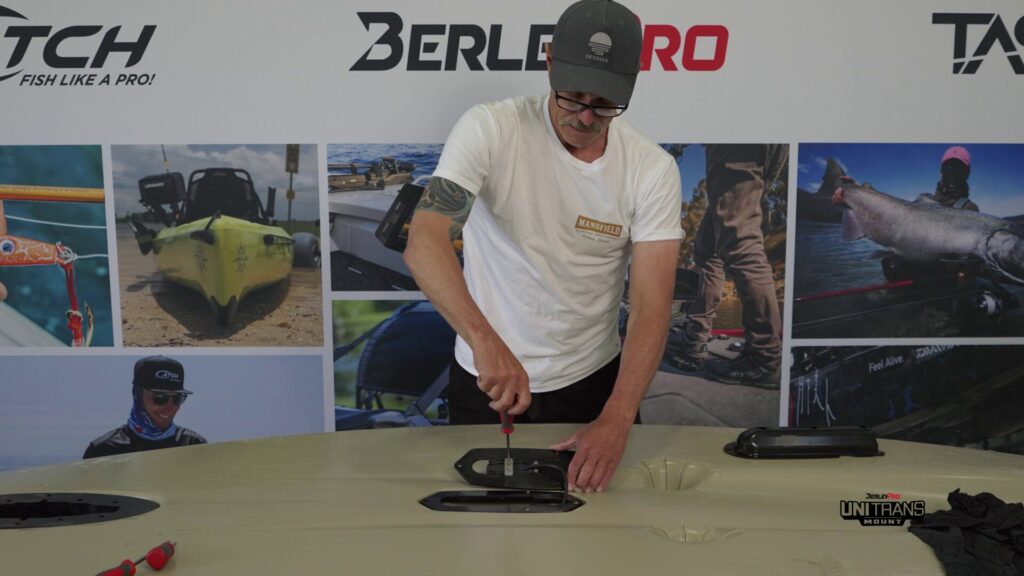

Screw the BerleyPro UNI TRANS mount plate to the kayak using the existing Hobie rear screw.
Step 3.

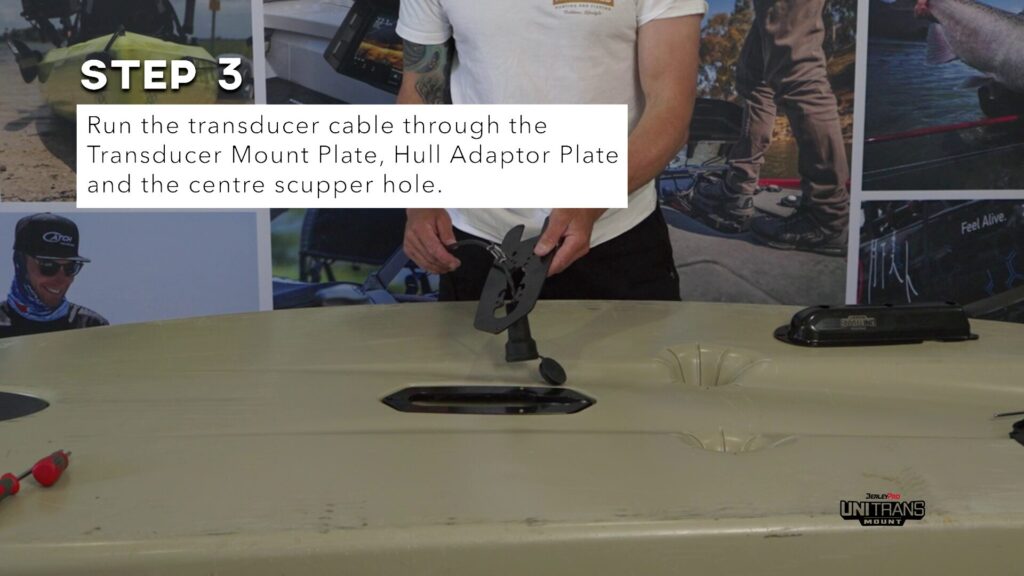

Run the transducer cable through the Transducer Mount Plate, Hull Adaptor Plate and the centre scupper hole.
Step 4.
Thread the transducer cord all the way through the hull of the kayak.
Step 5.

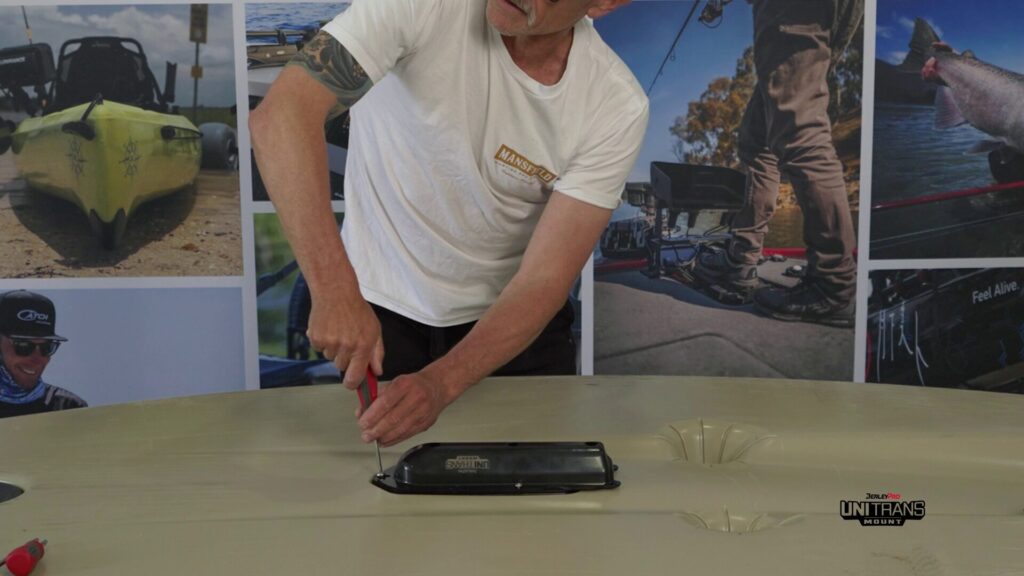

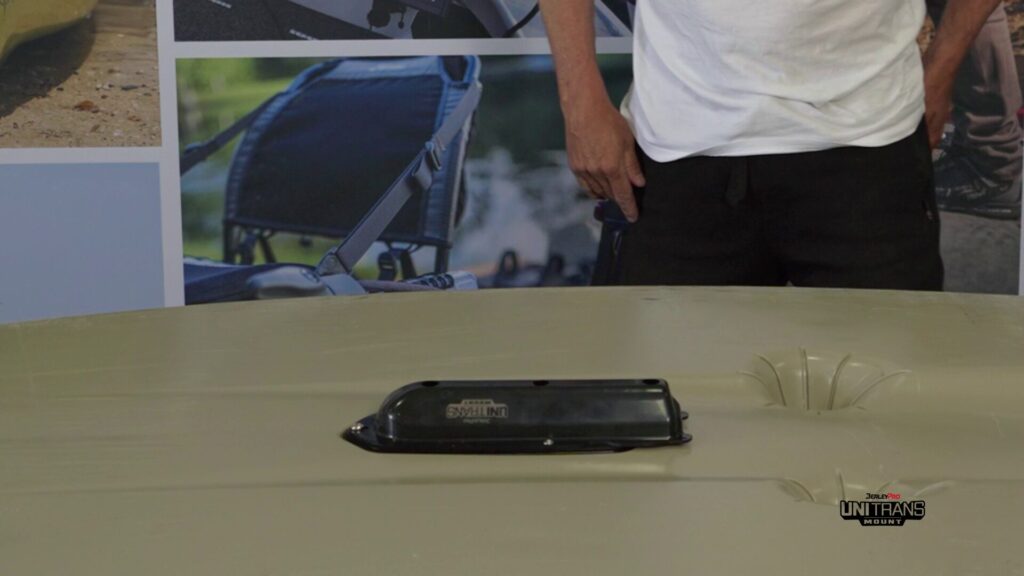

Use the supplied stainless-steel screws and washers to attach your transducer to the aligned holes on the UNI TRANS mount palate.
Step 6.

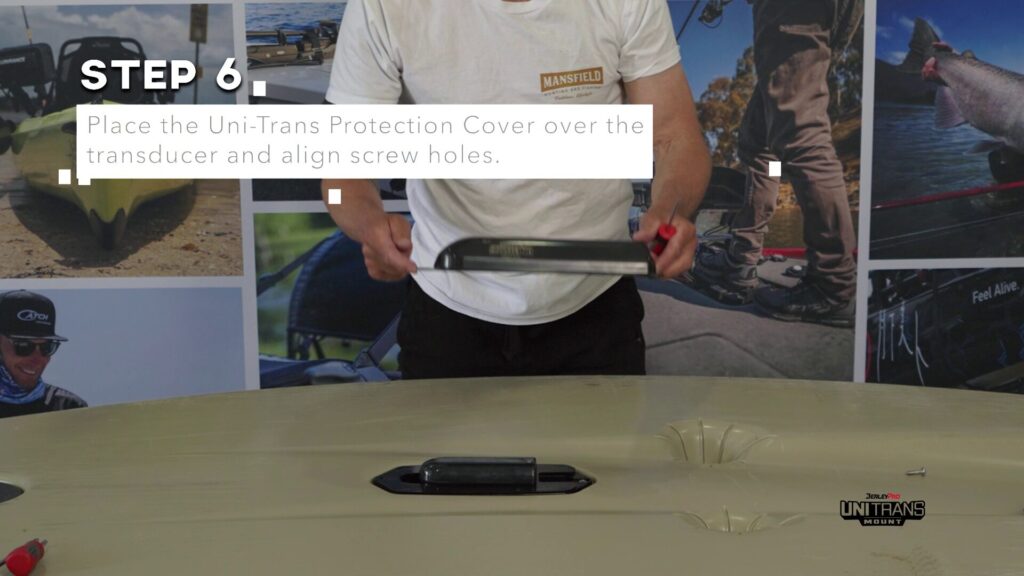

Place the UNI TRANS Protection Cover over the transducer and align screw holes.
Step 7.
Use the supplied screws and existing Hobie front screw to secure the transducer and cover the in position
