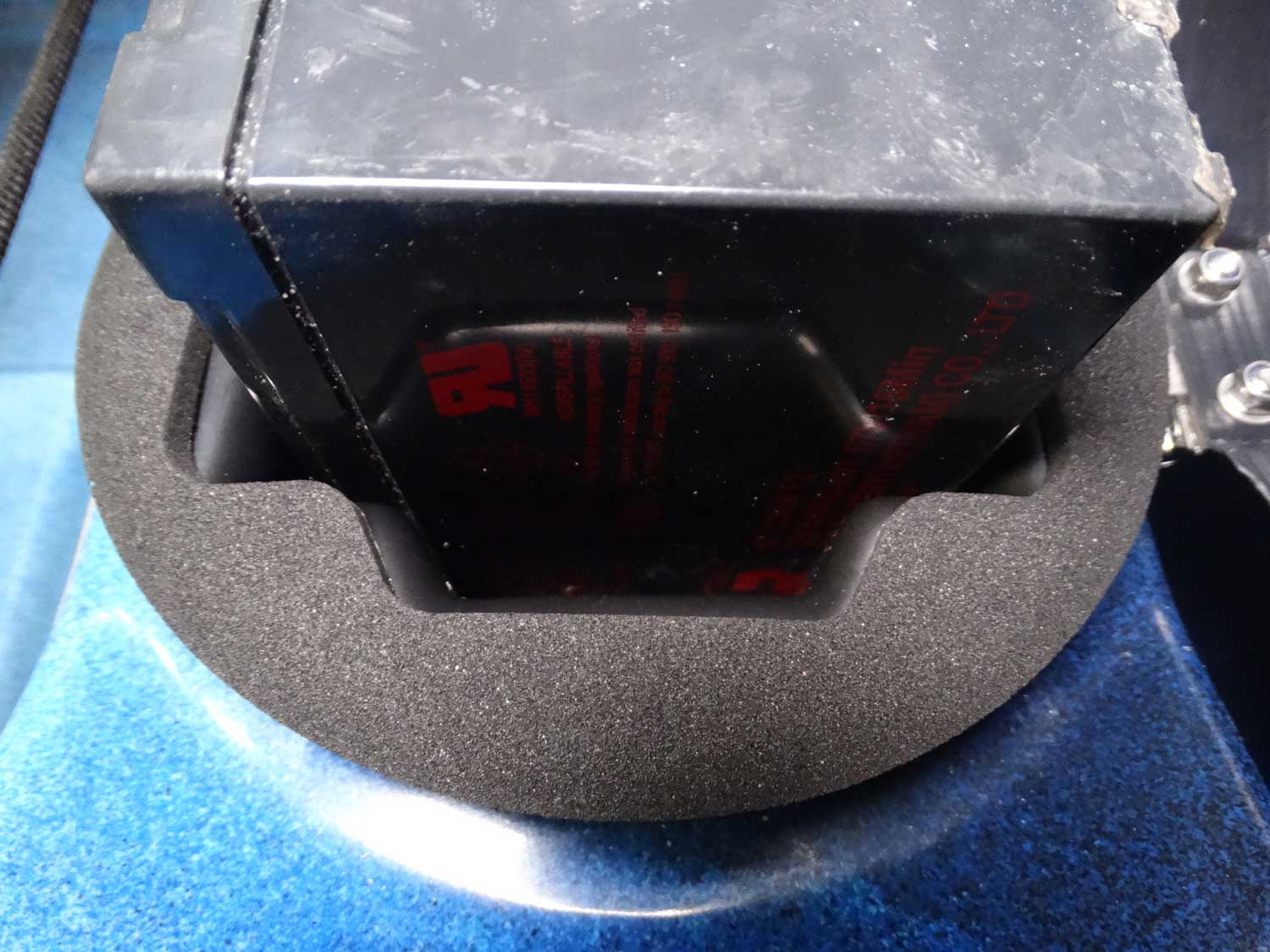

The Propel Power Pack can not only be used for electronics at the back of the kayak, but also at the front. We have allowed a small recess on either side of the battery so cables can be run to the front the following way.

Battery-Installed-Space

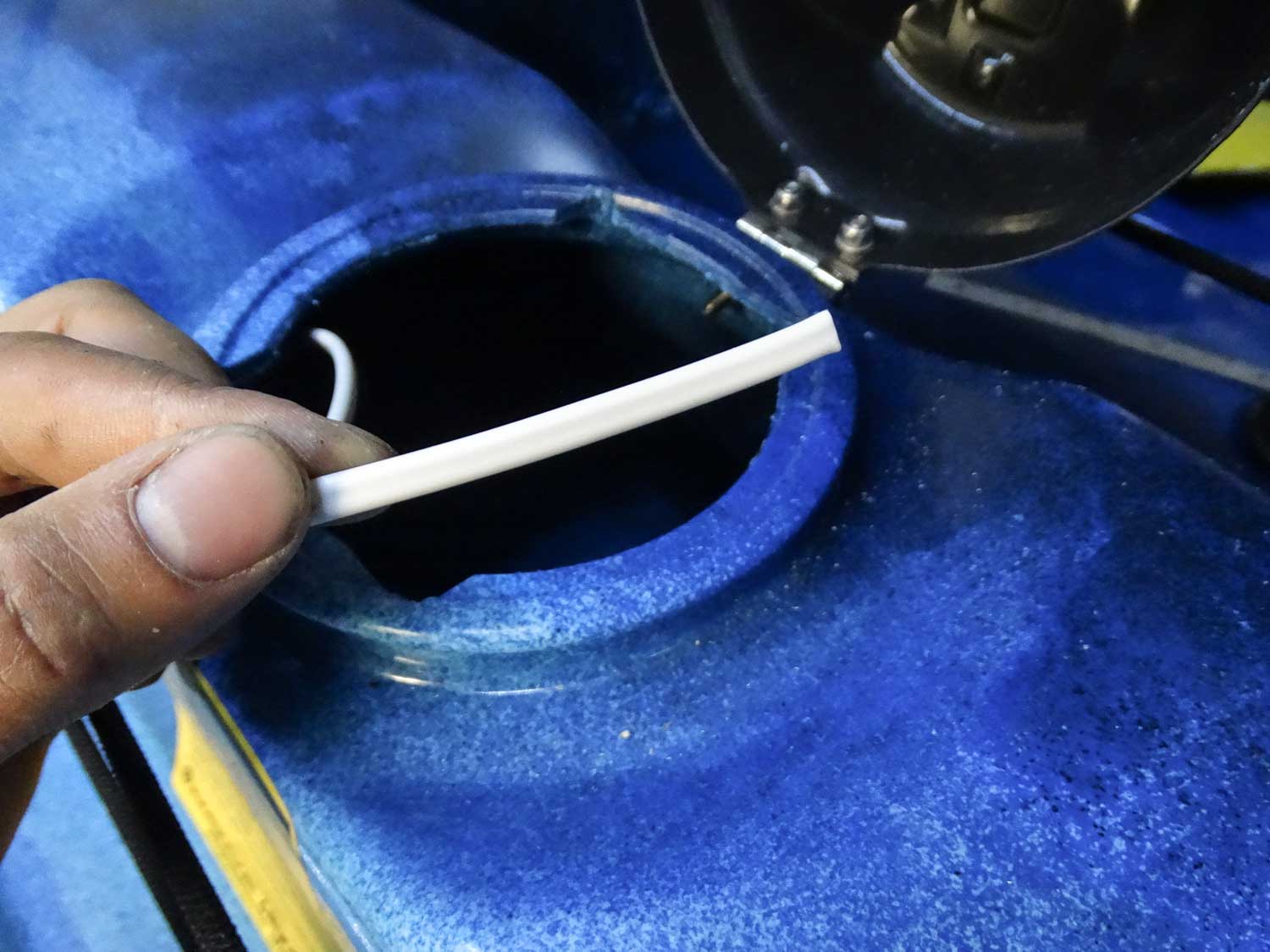

Pull a cable through from the front to the rear and extrude it at least 20cm from the hatch to give yourself plenty of wire to work with.



Cable-Run

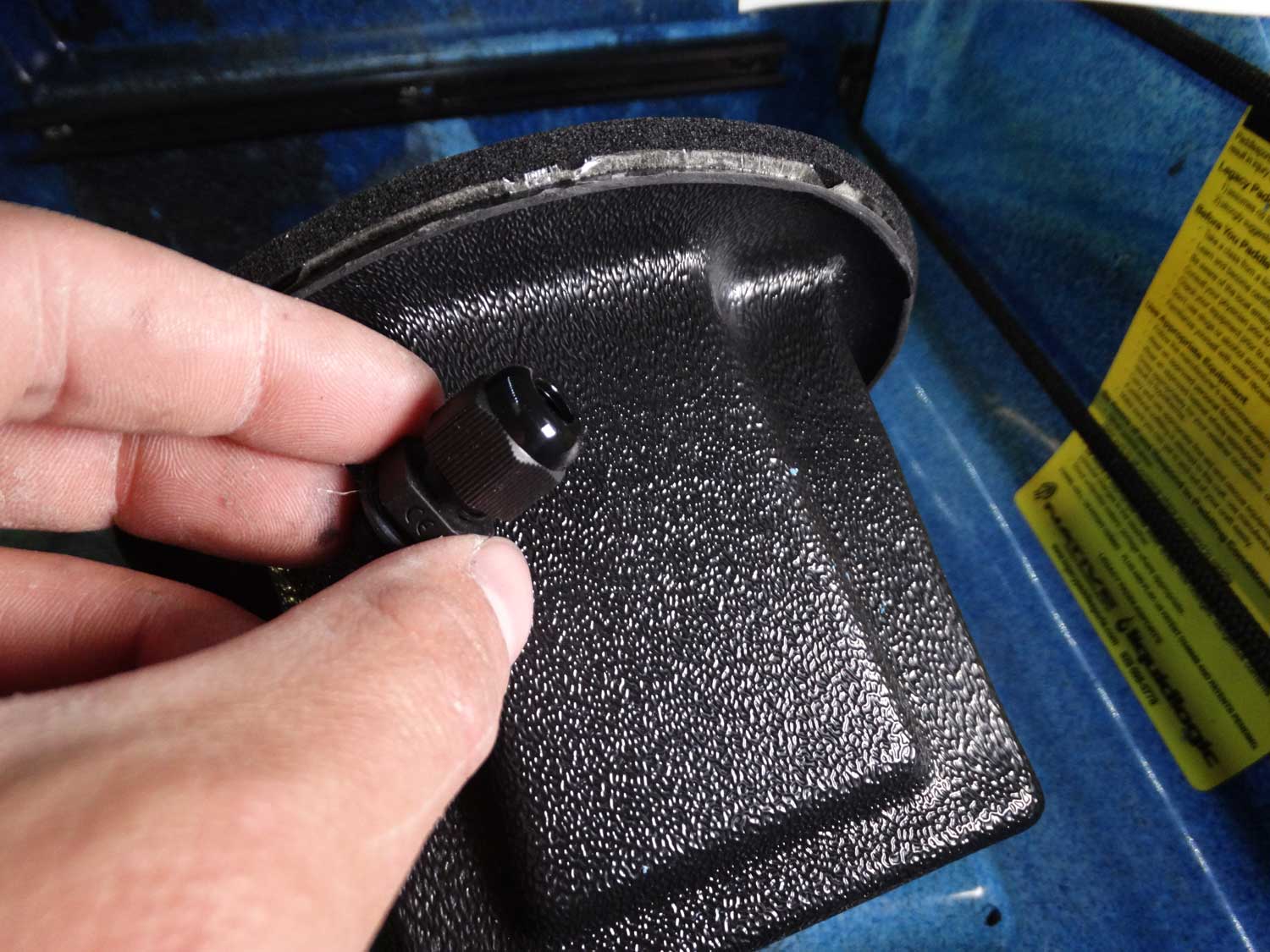

We installed a 12mm cable gland in the side of the battery bucket.



m12-cable-gland

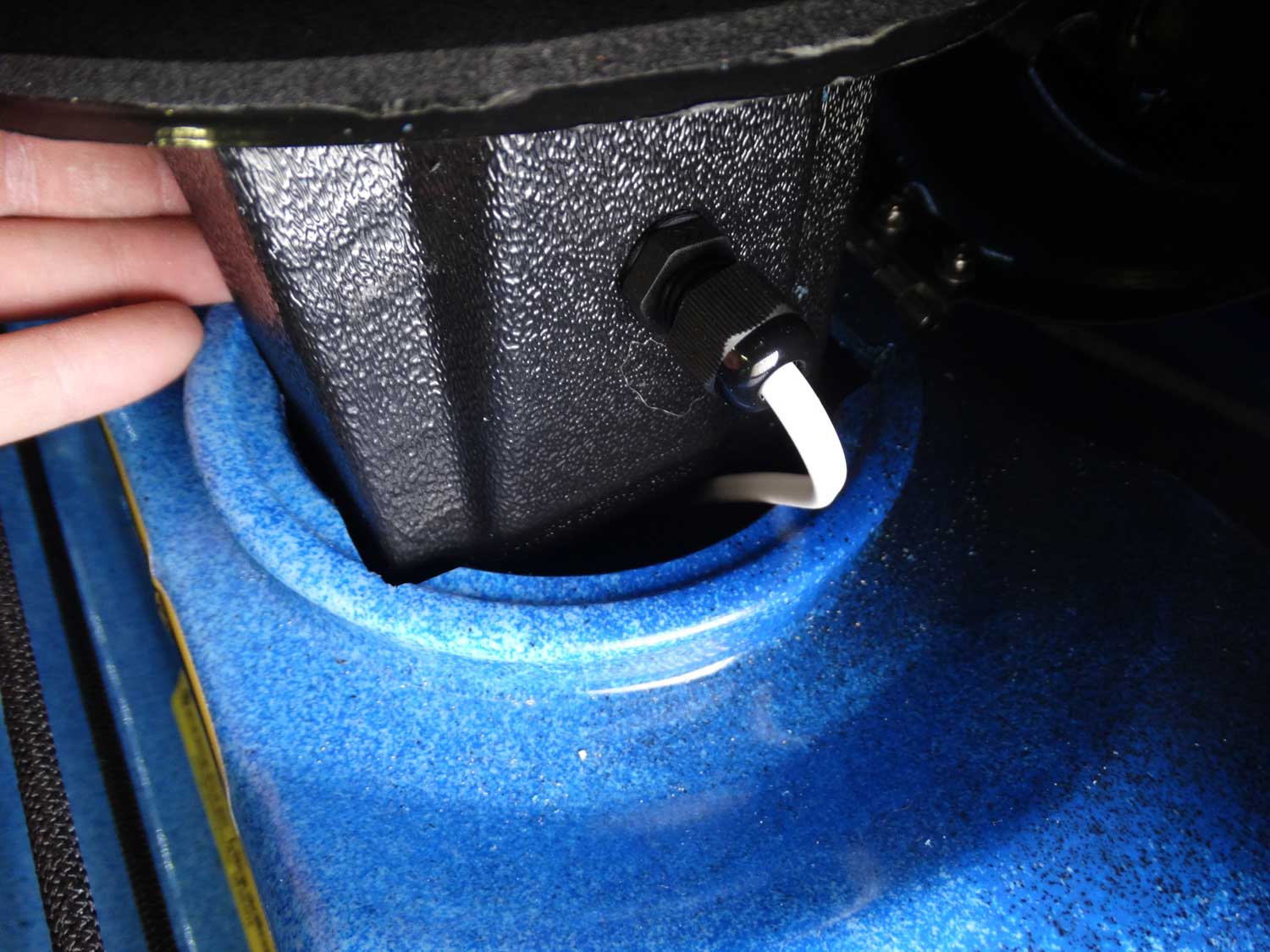

With the wires through the cable gland and it installed it will not fit back through the hull.



Cable-Gland-Won't-Fit

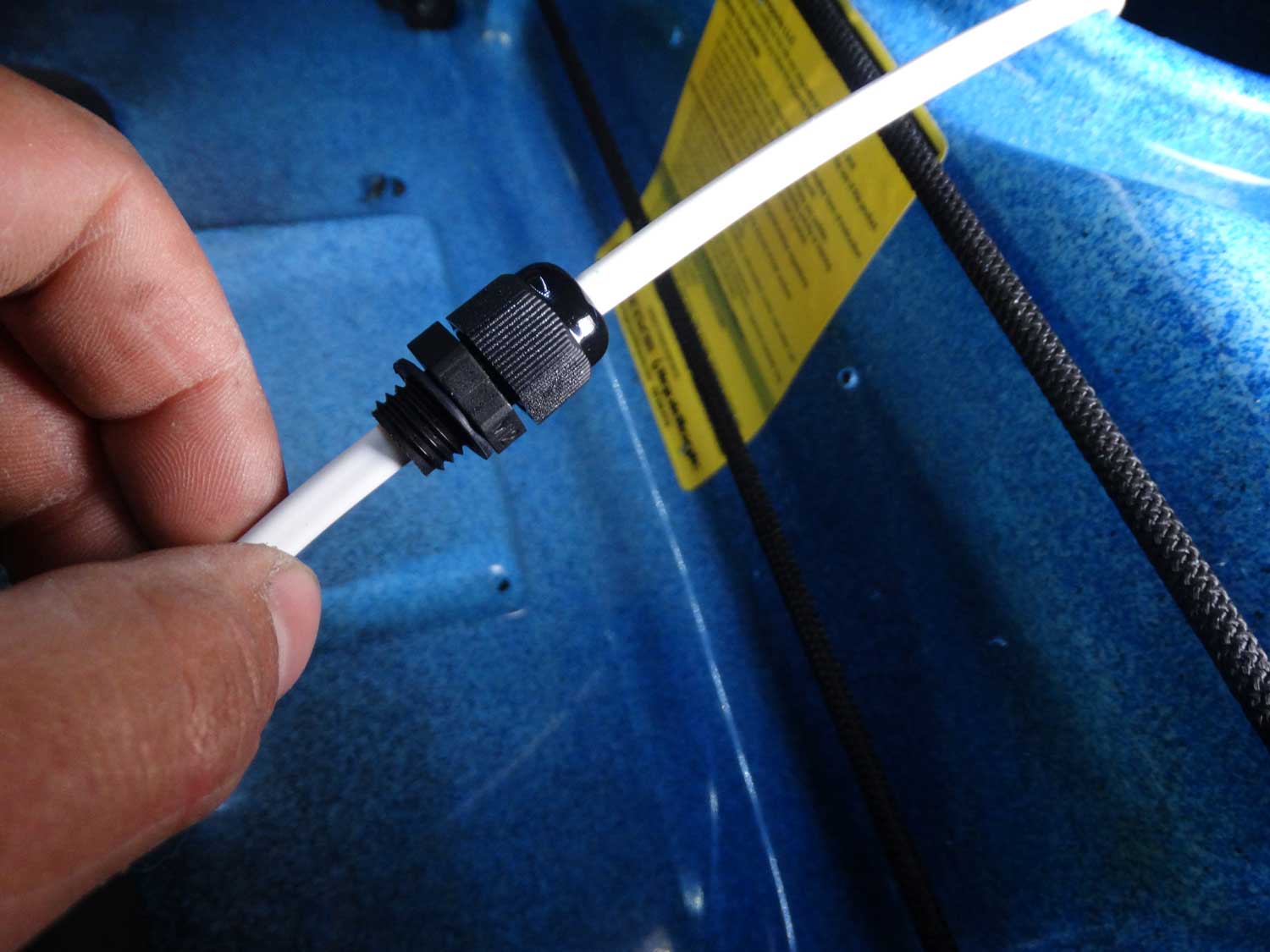

To solve this we tightened the gland on the cable before it was installed into the bucket.



Gland-tight-on-cable

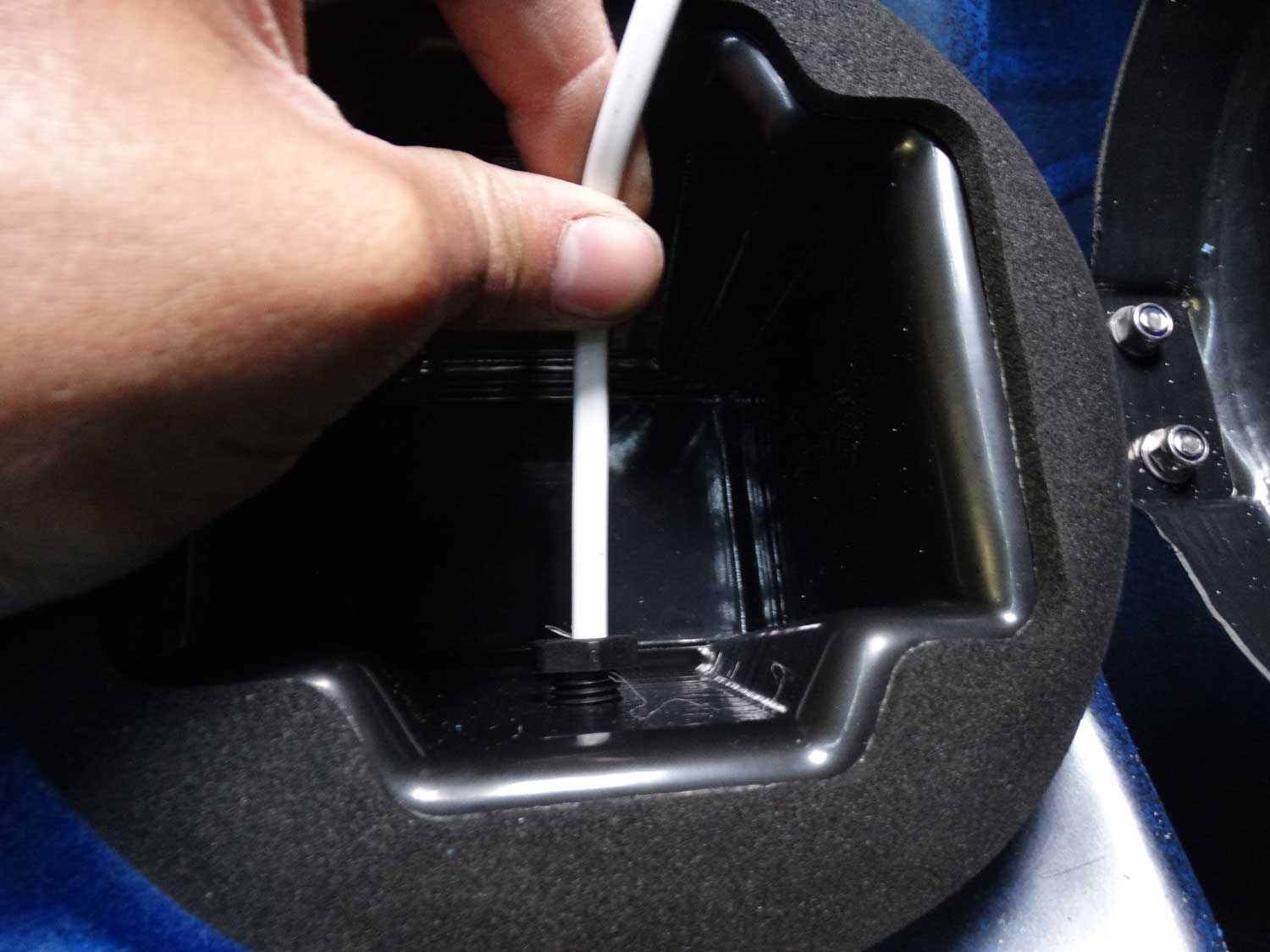

With the bucket installed into the hull the gland can now be pulled through and tightened.



Gland-pulled-through-with-cable

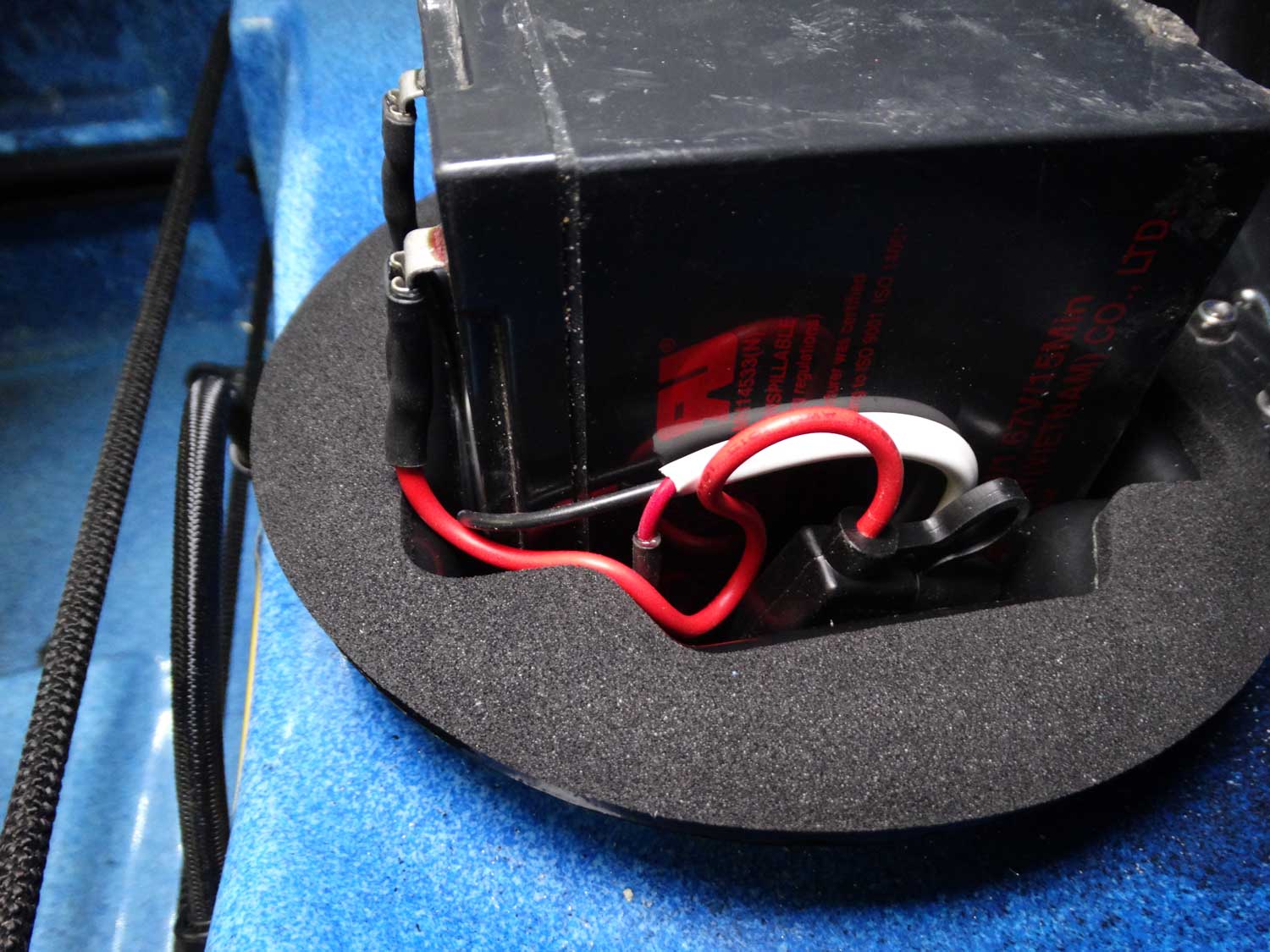

The recess on each side of the battery is so cables can be run for fish finders and it also provides a space for fuse holders to be neatly stowed.



Fuse-holder-wired-in
